Python800-B10 SCARA Robot

Get A Quote

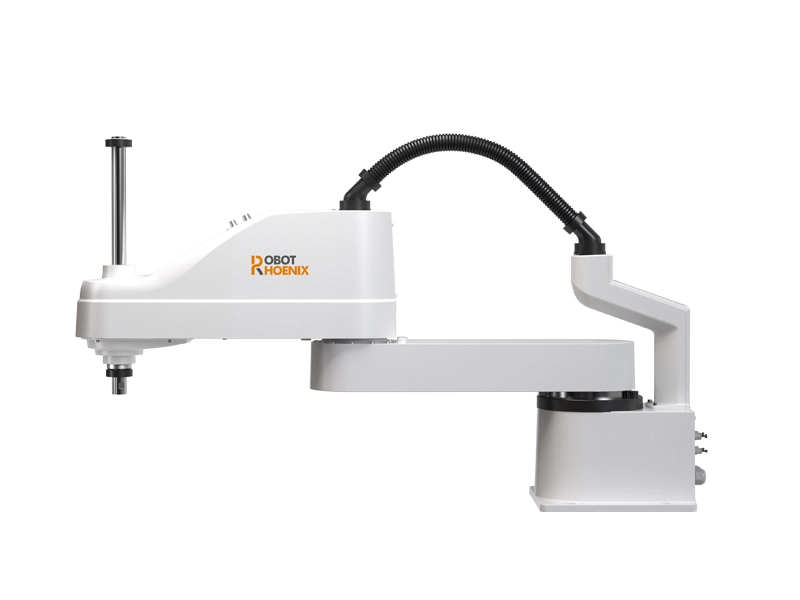

python800 b10 scara robot 1

Python 800-B10 SCARA Robot is a 4-axis robot with a maximum payload of 10kg. It has superior precision, speed, linearity and verticality performance. It can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.


Specification of Python800-B10 SCARA Robot


Robot Model

Python800-B10

Maximum Operating Speed

Joint 1 and 2

9360mm/s

Joint 3

1600mm/s

Joint 4

2600°/s

Repeated Positioning Accuracy

Joint 1 and 2

±0.025mm

Joint 3

±0.01mm

Joint 4

±0.01°

Load

Rated

5kg

Maximum

10kg

Measure

Installation Hole Diameter

160×210mm; 4- φ12

Z-axis Diameter

25mm

Weight

39kg (excluding cable)

Installation Type

Table Installation

Interface

I/O Interface

Ethernet

2

USB

2

Ethercat

1

RS232/RS485

1


Features of Python800-B10 SCARA Robot

  • Payload is 10kg

  • Working diameter is 1600mm

  • Floor mounting

  • Protection grade IP54

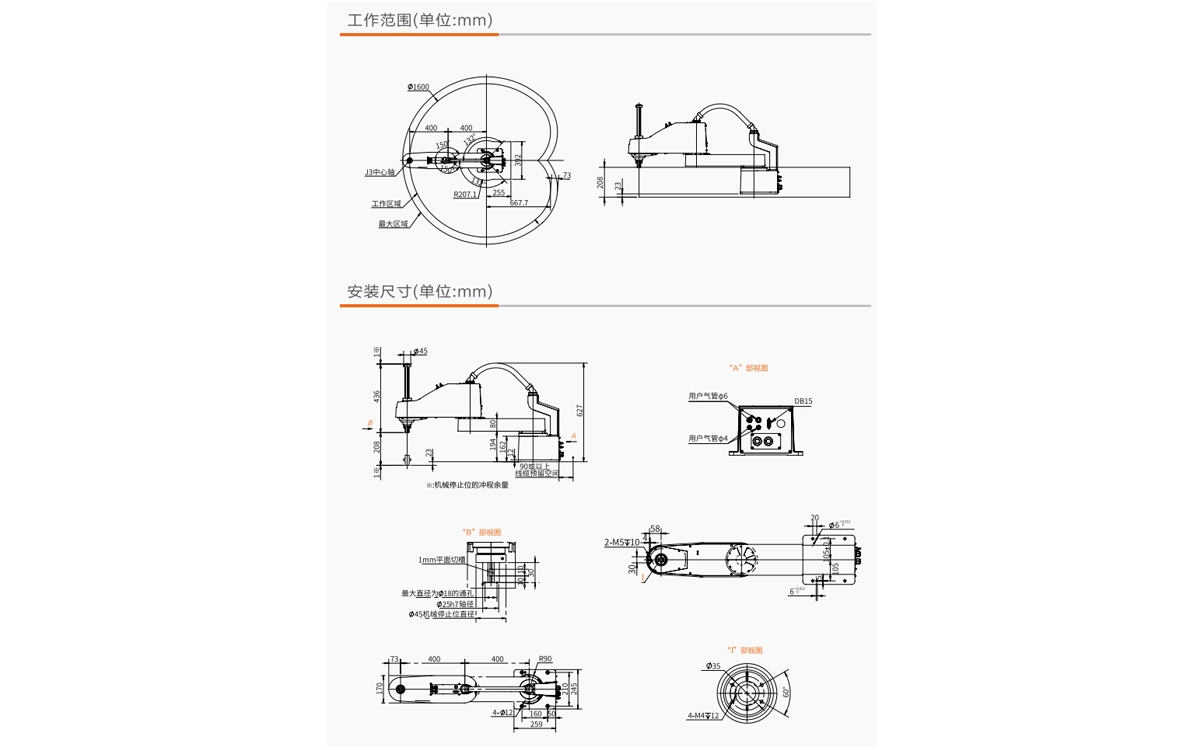

Technical Drawing of Python800-B10 SCARA Robot

Technical Drawing of Python800-B10 SCARA Robot
