Delta Robot's Fourth-Axis Motor: Differences Between Static and Moving Platform Configurations

In delta robot design and application, the configuration of the fourth-axis motor (whether on a static platform or mounted on the moving platform) affects the robot's performance, precision, stability, and suitability for various tasks. Below is an optimized explanation of the key differences between these two configurations:

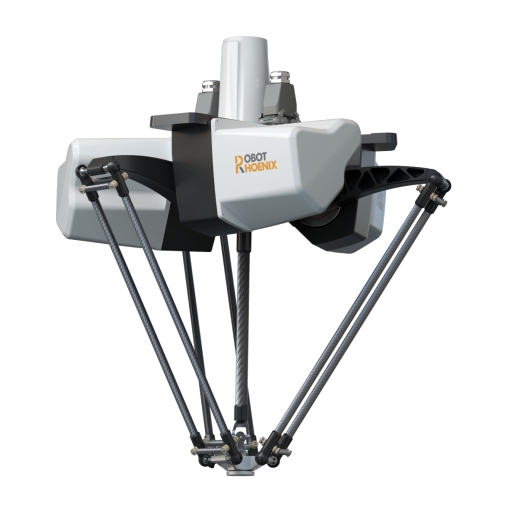

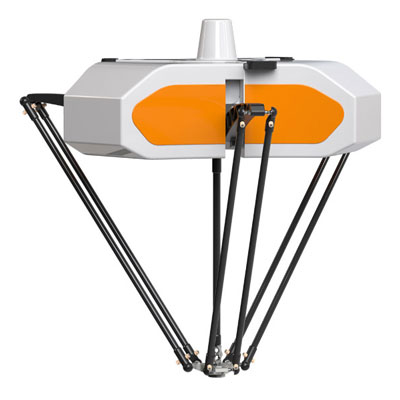

1. Fourth-Axis Motor on the Static Platform

· Definition: The fourth-axis motor is mounted on the robot’s static base, and the motor drive system remains stationary while driving other components.

· Advantages:

• Simplified Transmission System: Since the motor is fixed to the static platform, there is no need for complex interactions between the motor and the moving platform, which simplifies the transmission mechanism.

• Improved Precision: The fixed motor reduces the risk of errors accumulating during movement, which enhances the robot’s positional accuracy and stability.

• Better Thermal Management: With the motor and control system positioned on the static base, heat dissipation and maintenance are easier to manage.

• Suitability for Heavy Loads: The static platform configuration can better handle high loads, particularly in high-precision applications and large-scale operations, where maintaining system rigidity is crucial.

· Disadvantages:

• Limited Flexibility: The motor's static placement may limit flexibility, especially in applications requiring complex motion adjustments.

• Larger Footprint: The need to accommodate the motor and related control systems on the static platform can result in a larger overall robot structure, reducing flexibility and increasing space requirements.

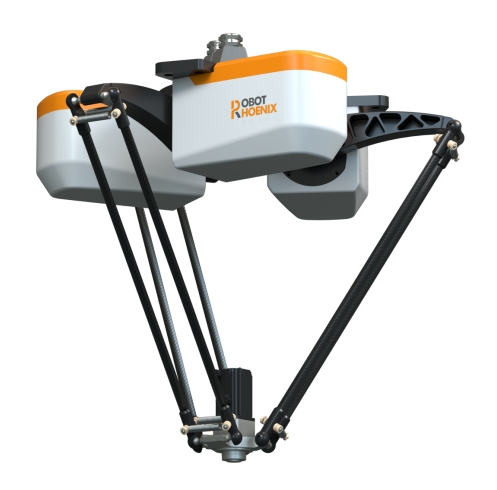

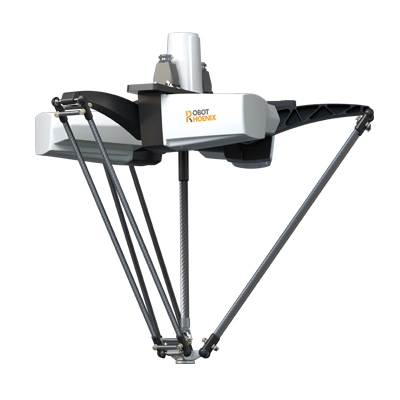

2. Fourth-Axis Motor Mounted on the Moving Platform

· Definition: The fourth-axis motor is mounted directly on the moving platform, with the motor's movement directly driving the platform’s actions.

· Advantages:

• Higher Dynamic Performance: With the motor directly acting on the moving platform, the transmission system is more compact, which enhances dynamic response and is ideal for high-speed or high-precision tasks.

• Reduced Overall Size: Placing the motor on the moving platform reduces the robot's overall size, making it more suitable for environments with space constraints.

• Simplified Control Design: The integration of the motor with the moving platform reduces energy loss in the transmission process and can improve the efficiency of the control system.

· Disadvantages:

• Thermal Management Challenges: The motor being integrated into the moving platform could lead to overheating issues, especially during prolonged operation or under high load, making heat management more difficult.

• Increased Vibration and Error: The motion of the moving platform can affect motor stability, and at high speeds, mechanical vibrations and accumulated errors may degrade accuracy and stability.

• Load Handling: Mounting the motor on the moving platform may affect the robot's load capacity and rigidity, particularly under heavy loads, potentially leading to instability.

Summary

· Static Platform Configuration is more suited to applications requiring high precision and stability, particularly in scenarios involving heavy loads, complex processing, and high reliability. It offers better thermal management and system stability, making it ideal for large-scale industrial applications.

· Motor Mounted on the Moving Platform is better for high-speed, dynamic response applications, especially in environments where space is limited or flexibility is needed. Although it allows for a more compact design, it may face thermal management and vibration issues.

Choosing the right fourth-axis motor configuration based on the specific application requirements is crucial for optimizing robot performance and efficiency.
