Python650-B6 SCARA Robot

Get A Quote
scara robot arm

Python 650-B6 SCARA robot is a 4-axis robot with a maximum payload of 6kg. Due to its flexible SCARA robot arm, it has superior precision, speed, linearity and verticality performance. It can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.

Specification of Python650-B6 SCARA Robot


Robot ModelPython650-B6
Maximum Operating SpeedJoint 1 and 28200mm/s
Joint 31100mm/s
Joint 42360°/s
Repeated Positioning AccuracyJoint 1 and 2±0.02mm
Joint 3±0.01mm
Joint 4±0.01°
LoadRated3kg
Maximum6kg
MeasureInstallation Hole Diameter

172×140mm; 4- φ12

Z-axis Diameter20mm
Weight

26kg (excluding cable)

Installation TypeTable Installation
InterfaceI/O Interface
Ethernet2
USB2
Ethercat1
RS232/RS4851


Robots

Features of Python650-B6 SCARA Robot Arm

  • Payload is 6kg

  • Working diameter is 1300mm

  • Floor mounting

  • Protection grade IP54

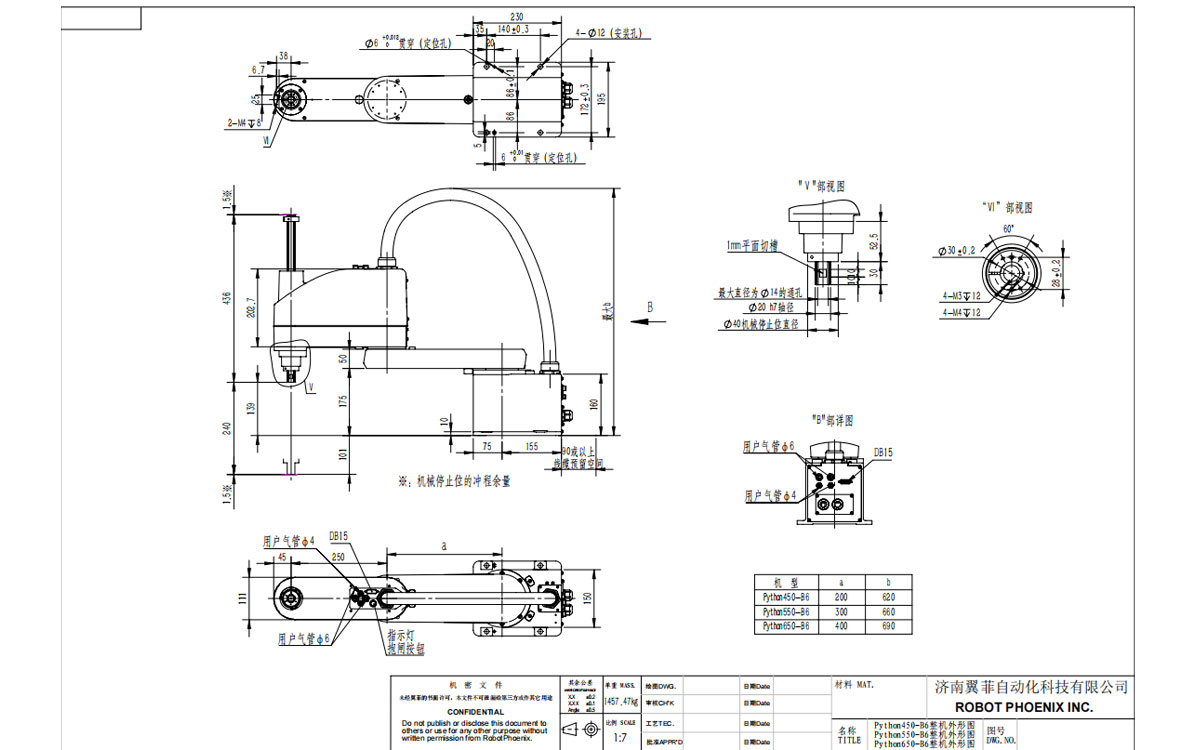

Technical Drawing of Python650-B6 SCARA Robot

Technical Drawing of Python650-B6 SCARA Robot
