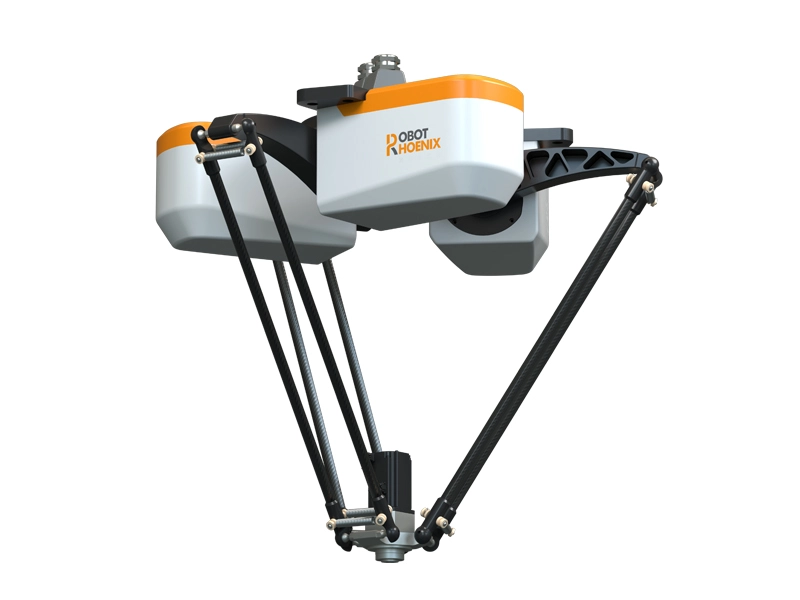

Name: BAT800M-E3 Delta Robot
Brand: Robotphoenix LLC

BAT800M-E3 delta robot is a 4-axis parallel robot with a rated payload of 3kg as well as a flexible and sensitive delta arm, which has the characteristics of high speed and precision, small footprint and strong rated power. It contributes to a flexible production during high precision and high speed manufacturing lines.

Specification of BAT800M-E3 Delta Robot

Robot Model	BAT800M-E3
Rated Load	3kg
Maximum Load	10kg
Working Space Diameter	800mm
Number of Axles	4
Repeated Positioning Accuracy	0.08mm
Repeated Positioning Accuracy of four Axis Angle (°)	0.05°
Maximum Speed	10m/s
Power Supply Voltage	single-phase AC220V±10％, 50/60HZ
Rated Power	2.7KW
Protection Grade	IP54
Weight	62kg

Features of BAT800M-E3 Delta Spider Robot

The rated payload is 3kg
The working space diameter is 800mm
The repositioning accuracy is 0.08mm
The maximum speed is 10m/s
The rated power is 2.7kW

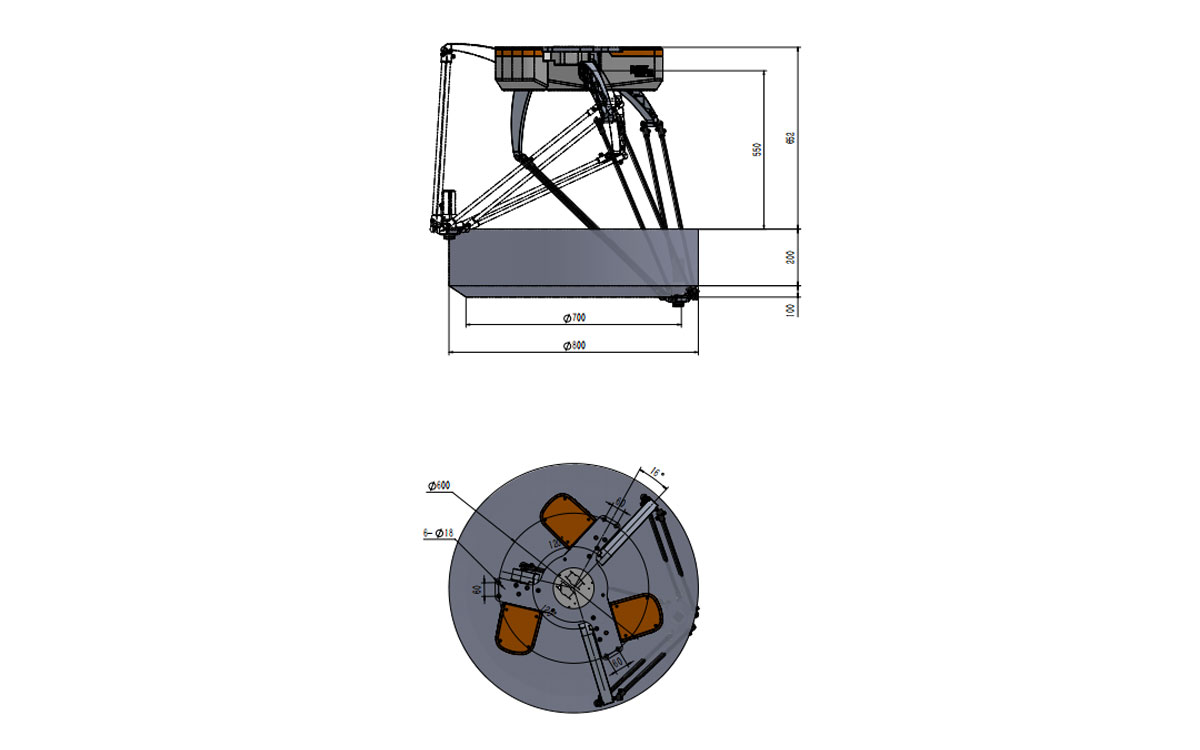

Technical Drawing of BAT800M-E3 Delta Robot
