BAT600M-E3 Delta Robot

Get A Quote

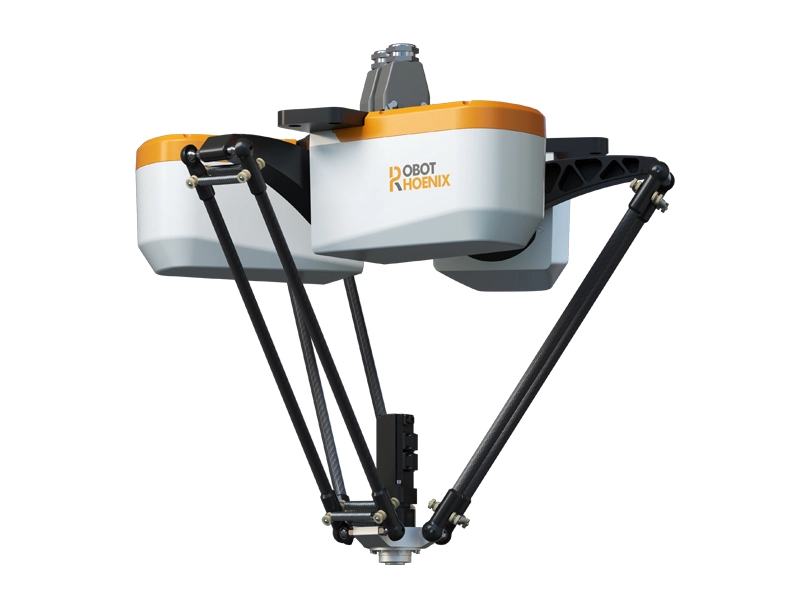

bat600m e3 delta robot 1

BAT600M-E3 delta robot is a 4-axis parallel robot with a rated payload of 3kg as well as a flexible and sensitive delta arm, which has the characteristics of high speed and precision, small footprint and strong rated power. It contributes to a flexible production during high precision and high speed manufacturing lines.


Specification of BAT600M-E3 Delta Robot


Robot Model

BAT600M-E3

Rated Load

3kg

Maximum Load

12kg

Working Space Diameter

600mm

Number of Axles

4

Repeated Positioning Accuracy

0.08mm

Repeated Positioning Accuracy of four Axis Angle (°)

0.05°

Maximum Speed

10m/s

Power Supply Voltage

single-phase AC220V±10%, 50/60HZ

Rated Power

2.7kW

Protection Grade

IP54

Weight

60kg


Features of BAT600M-E3 Delta Robot

  • The rated payload is 3kg

  • The working space diameter is 600mm

  • The repositioning accuracy is 0.08mm

  • The maximum speed is 10m/s

  • The rated power is 2.7kW

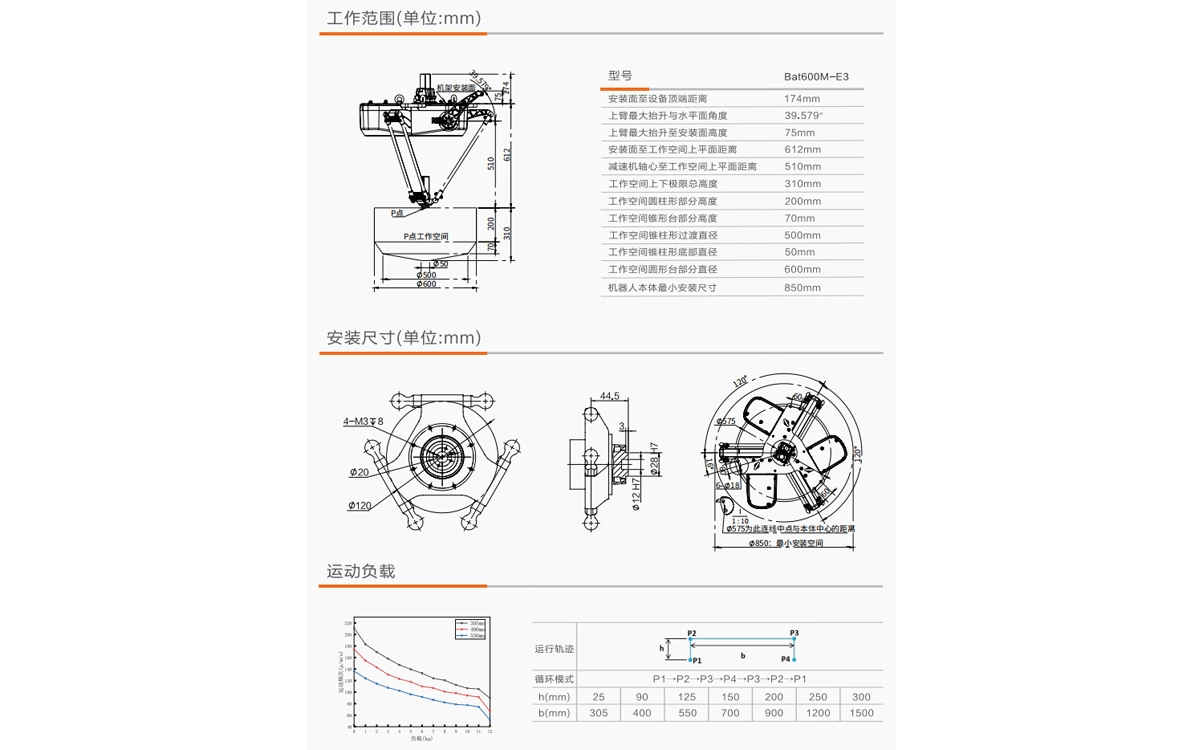

Technical Drawing of BAT600M-E3 Delta Robot

Technical Drawing of BAT600M-E3 Delta Robot
