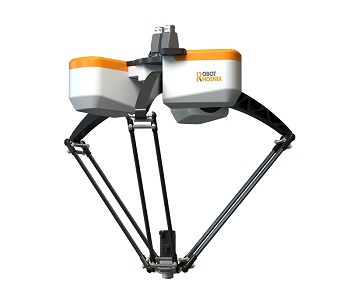

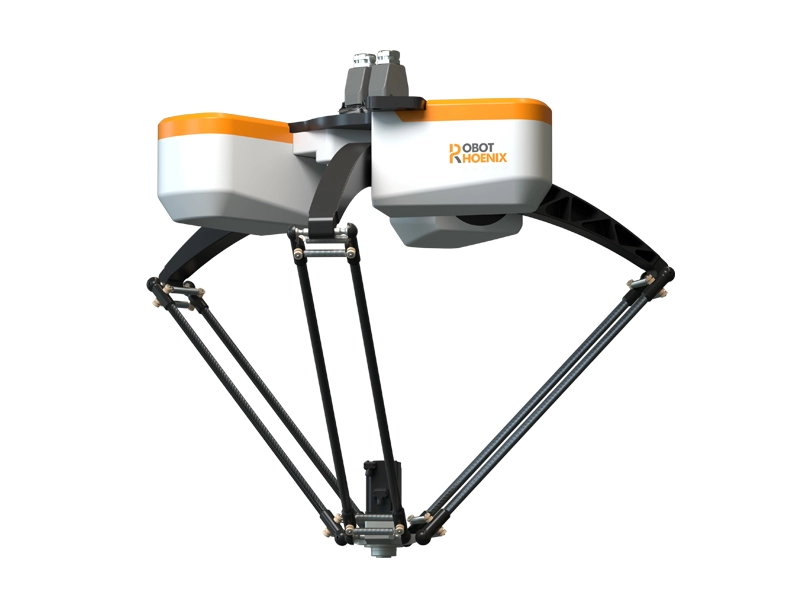

Name: BAT1100M-E3 Delta Robot
Brand: Robotphoenix LLC

BAT1100M-E3 delta robot is a 4-axis parallel robot with a rated payload of 3kg as well as a flexible and sensitive delta arm, which has the characteristics of high speed and precision, small footprint and strong rated power. It contributes to a flexible production during high precision and high speed manufacturing lines.

Specification of BAT1100M-E3 Delta Robot

Robot Model	BAT1100M-E3
Rated Load	3kg
Maximum Load	9kg
Working Space Diameter	1100mm
Number of Axles	4
Repeated Positioning Accuracy	0.08mm
Repeated Positioning Accuracy of four Axis Angle (°)	0.05°
Maximum Speed	10m/s
Power Supply Voltage	single-phase AC220V±10％, 50/60HZ
Rated Power	2.7kW
Protection Grade	IP54
Weight	63kg

Features of BAT1100M-E3 Delta Arm Robot

The rated payload is 3kg
The working space diameter is 1100mm
The repositioning accuracy is 0.08mm
The maximum speed is 10m/s
The rated power is 2.7kW

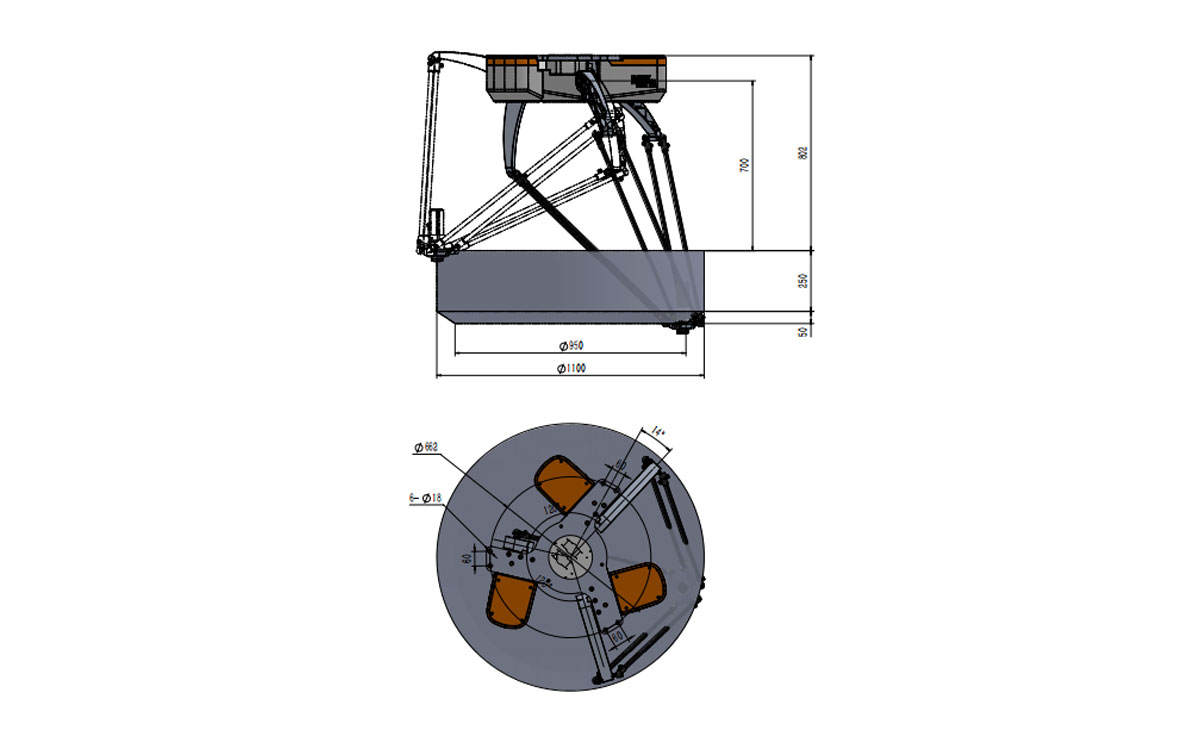

Technical Drawing of BAT1100M-E3 Delta Robot
