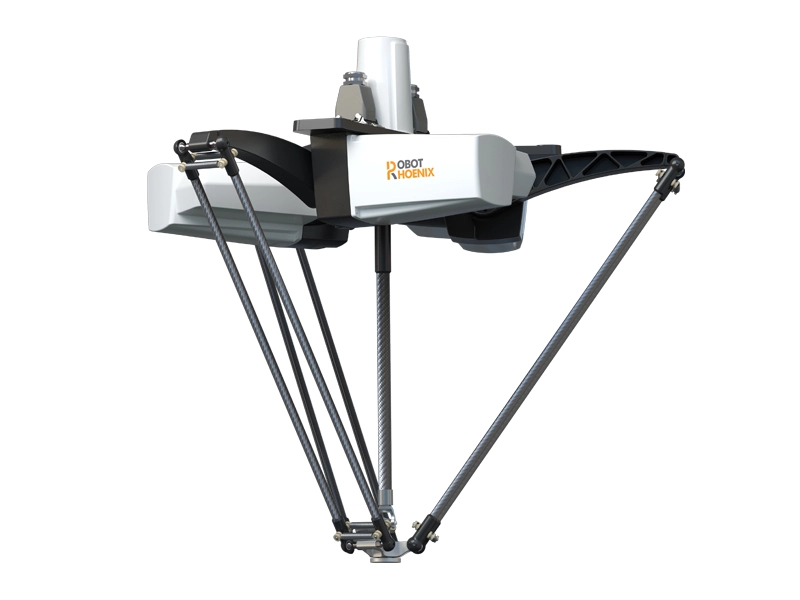

Name: BAT1100-S3 Delta Robot
Brand: Robotphoenix LLC

Bat1100-S3 delta robot is a 4-axis parallel robot with a rated payload of 3kg, which has the characteristics of high speed and precision, small footprint and strong rated power. The delta style robot is very popular among industrial robot manufacturing companies, contributing to a flexible production during high precision and high speed manufacturing lines.

Specification of BAT1100-S3 Delta Robot

Robot Model	BAT1100-S3
Rated Load	3kg
Maximum Load	12kg
Working Space Diameter	1100mm
Number of Axles	4
Repeated Positioning Accuracy	0.08mm
Repeated Positioning Accuracy of four Axis Angle (°)	0.2°
Maximum Speed	10m/s
Power Supply Voltage	three-phase AC380V±10％, 50/60HZ
Rated Power	3.4KW
Protection Grade	IP54
Weight	60kg

Features of BAT1100-S3 Delta Style Robot

The rated payload is 3kg
The working space diameter is 1100mm
The repositioning accuracy is 0.08mm
The maximum speed is 10m/s
The rated power is 3.4kW

Technical Drawing of BAT1100-S3 Delta Robot
