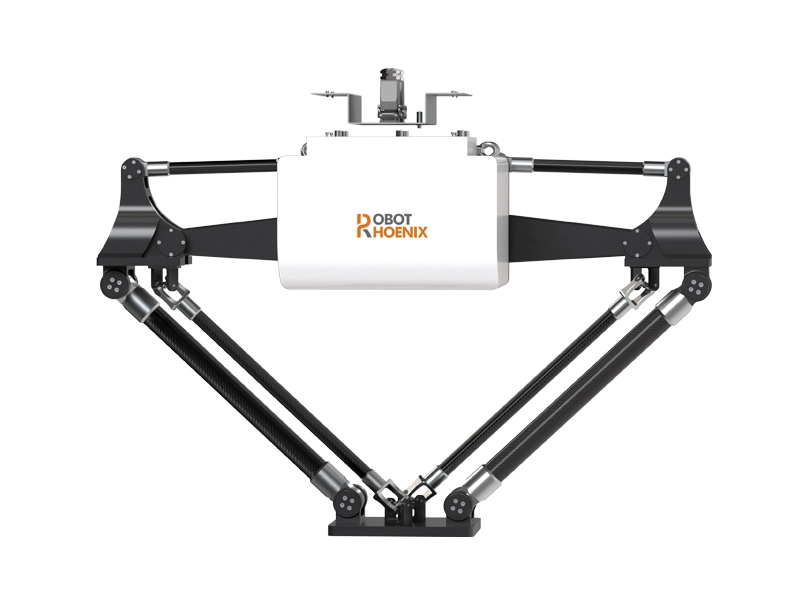

Name: BAT1000B-S60 Heavy Load Delta Robot
Brand: Robotphoenix LLC

BAT1000B-S60 delta robot is a 2-axis parallel robot with a rated payload of 60kg, which has the characteristics of high speed and precision, small footprint and strong rated power. The delta industrial robot contributes to a flexible production during high precision and high speed manufacturing lines.

Specification of BAT1000B-S60 Heavy Load Delta Robot

Robot Model	BAT1000B-S60
Rated Load	60kg
Working Space Diameter	1000mm
Number of Axles	2
Repeated Positioning Accuracy	0.02mm
Repeated Positioning Accuracy of four Axis Angle (°)	/
Maximum Speed	2m/s
Power Supply Voltage	three-phase AC380V±10％, 50/60HZ
Rated Power	3.9KW
Protection Grade	IP54
Weight	185kg

Features of BAT1000B-S60 Heavy Load Industrial Delta Robot

The rated payload is 60kg
The working space diameter is 1000mm
The repositioning accuracy is 0.02mm
The maximum speed is 2m/s
The rated power is 3.9kW

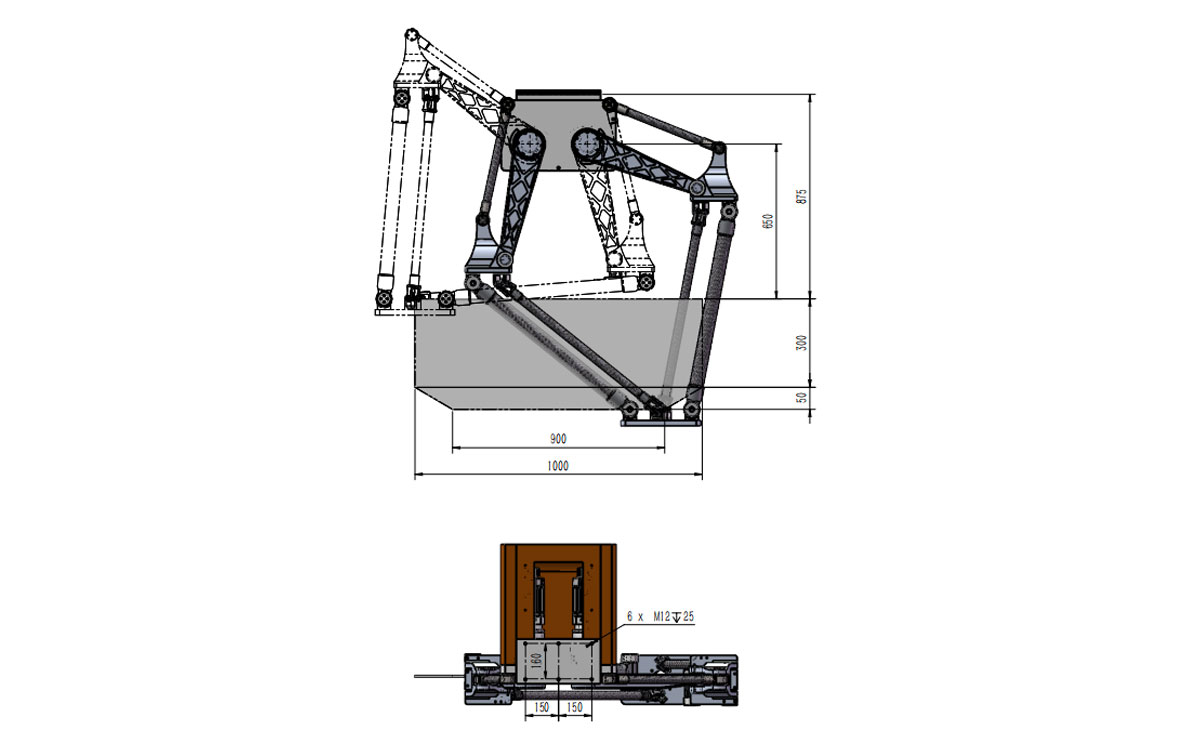

Technical Drawing of BAT1000B-S60 Heavy Load Delta Robot
